大倍率二氧化硅/碳复合材料的制备及电化学性能表征

doi:10.11896/j.issn.1005-023X.2018.03.002

Abstract
Figure/Table
References
Related Citation (15)

Download:

richhtml

Full Text ( PDF ) (1798KB)
Export: BibTeX | EndNote (RIS)

Abstract

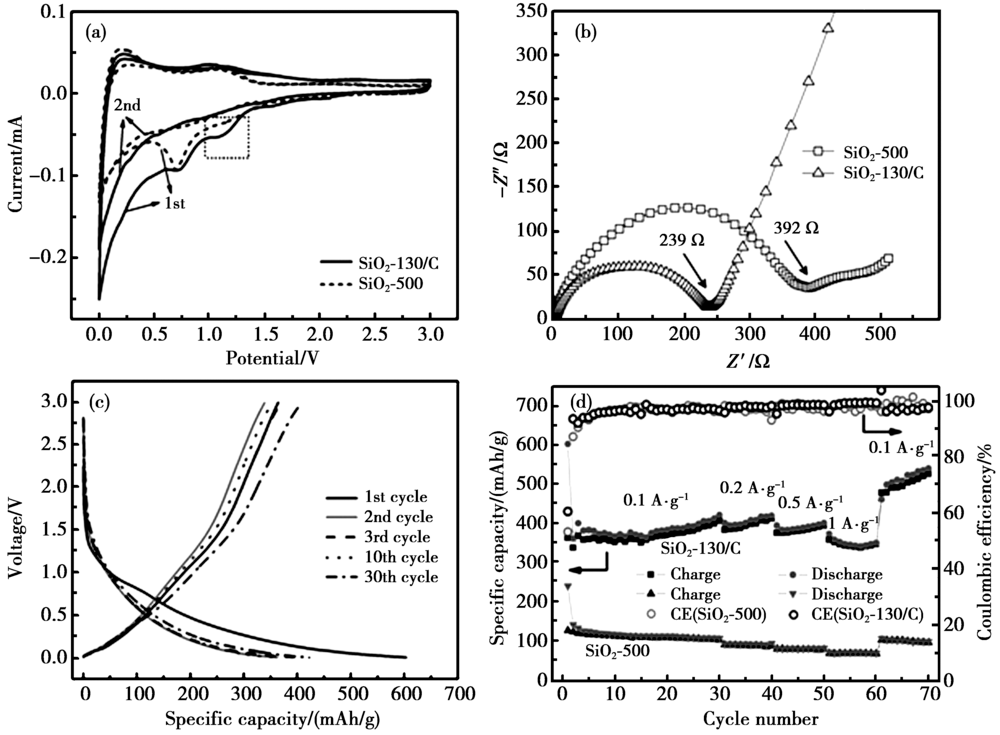

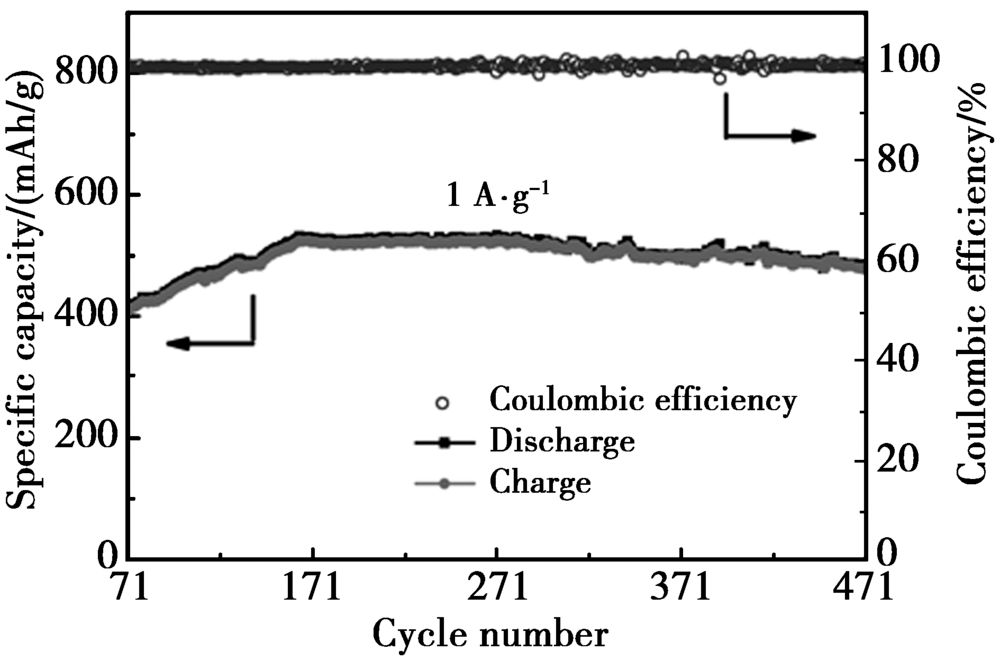

High-rate SiO₂/C composite (called SiO₂-130/C) was synthesized using tetraethyl orthosilicate (TEOS) as SiO₂ precursor in a amphiphilic carbonaceous material (ACM)-polyethylene glycol 400(PEG 400) mixture. Confinement effect of smaller cells formed by ACM and PEG 400 on diameter of SiO₂ was studied. The results showed that the diameter of SiO₂ nanospheres was reduced from 500 nm (without confinement effect) to 130 nm (with confinement effect),and carbon framework resulting from carbon-rich ACM was constructed on the surface of SiO₂. Electrochemical performance of SiO₂-130/C composite was evaluated as anode material for lithium ion batteries. The reversible capacities of the SiO₂-130/C composite were 527 mAh ·g ^-1 and 347 mAh·g ^-1 at current densities of 0.1 A·g ^-1and 1 A·g ^-1, respectively. Moreover, the SiO₂-130/C composite, after the process of electrochemical activation, exhibited reversible capacitance as high as 483 mAh·g ^-1 at a current density of 1 A·g ^-1 over 400 cycles,indicating great rate performance and long-term cycling stability of the as-prepared SiO₂-130/C composite.

Key words： amphiphilic carbonaceous material SiO₂/C composite rate capability

Published: 10 February 2018 Online: 2018-02-10

CLC number:

TM912

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yanzhen WANG
	Mingming CHEN
	Chengyang WANG

Cite this article:

Yanzhen WANG,Mingming CHEN,Chengyang WANG. Preparation and Electrochemical Properties Characterization of High-rate SiO₂/C Composite Materials[J]. Materials Reports, 2018, 32(3): 357-361.

URL:

https://www.mater-rep.com/EN/10.11896/j.issn.1005-023X.2018.03.002 OR https://www.mater-rep.com/EN/Y2018/V32/I3/357

1	Nguyen C C, Choi H, Song S W . Roles of oxygen and interfacial stabilization in enhancing the cycling ability of silicon oxide anodes for rechargeable lithium batteries[J]. Journal of Electrochimica Society, 2013,160(6):A906.
2	Takezawa H, Iwamoto K, Ito S , et al. Electro-chemical behaviors of nonstoichiometric silicon subo-xides (SiOx) film prepared by reactive evaporation for lithium rechargeable batteries[J]. Journal of Power Sources, 2013,244:49.
3	Li X F, Dhanabalan A, Meng X B , et al. Nanoporous tree-like SiO2 films fabricated by sol-gel assisted electrostatic spray deposition[J]. Microporous and Mesoporous Materials, 2012,151:488.
4	Sasidharan M, Liu D N, Gunawardhana D , et al. Synjournal, characterization and application for lithium-ion rechargeable batteries of hollow silica nanospheres[J]. Journal of Materials Chemistry, 2011,21(36):13881.
5	Lv P, Zhao H, Wang J , et al. Facile preparation and electrochemical properties of amorphous SiO2/C compo-site as anode material for lithium ion batteries[J]. Journal of Power Sources, 2013,237:291.
6	Li M, Li J, Li K , et al. SiO2/Cu/polyacrylonitrile-C composite as anode material in lithium ion batteries[J]. Journal of Power Sources, 2013,240:659.
7	Guo B K, Shu J, Wang Z X , et al. Electrochemical reduction of nano-SiO2 in hard carbon as anode material for lithium ion batteries[J]. Electrochemistry Communication, 2008,10(12):1876.
8	Yao Y, Zhang J, Xue L , et al. Carbon-coated SiO2 nanoparticles as anode material for lithium ion batteries[J]. Journal of Power Sources, 2011,196(23):10240.
9	Jiao M L, Liu K L, Shi Z Q , et al. SiO2/carbon composite microspheres with hollow core-shell structure as high stability electrode for lithium ion batteries[J]. Chemelectrochem, 2017,4(3):542.
10	Cao X, Chuan X, Li S , et al. Hollow silica spheres embedded in a porous carbon matrix and its superior performance as the anode for lithium-ion batteries[J]. Particle & Particle Systems Characterization, 2015,33(2):110.
11	Meng J K, Cao Y, Suo Y , et al. Facile fabrication of 3D SiO2@graphene aerogel compo-sites as anode material for lithium ion batteries[J]. Electrochimica Acta, 2015,176:1001.
12	Wu X, Shi Z Q, Wang C Y , et al. Nanostructured SiO2/C compo-sites prepared via electrospinning and their electrochemical properties for lithium ion batteries[J]. Journal of Electroanalytical Chemistry, 2015,746:62.
13	Wang J . Study on the structure of amphiphilic carbon-aceous mate-rial and its applications in electrode materials[D]. Tianjin:Tianjin University, 2010(in Chinese).
13	王瑨 . 两亲性炭材料的结构及其在电极材料领域应用的研究[D]. 天津:天津大学, 2010.
14	Chen M M, Zhang X Y, Wang L , et al. Effects of amphiphilic carbonaceous nanomaterial on the synjournal of MnO2 and its energy storage capability as an electrode material for pseudocapacitors[J]. Industrial & Engineering Chemistry Research, 2014,53(27):10974.
15	Wang J, Chen M M, Wang C Y , et al. Preparation of mesoporous carbons from amphiphilic carbonaceous material for high-perfor-mance electric double-layer capacitors[J]. Journal of Power Sources, 2011,196(1):550.
16	Favors Z, Wang W, Bay H H , et al. Stable cycling of SiO2 nanotubes as high-performance anodes for lithium-ion batteries[J]. Scientific Reports, 2014,4:4605.
17	Liu C, Li F, Ma L P , et al. Advanced materials for energy storage[J]. Advanced Materials, 2010,22:E28.
18	Li H H, Wu X L, Sun H Z , et al. Dual-porosity SiO2/C nanocomposite with enhanced lithium storage performance[J]. Journal of Physical Chemistry C, 2015,119(7):3495.
