RESEARCH PAPER |
|
|
|
|
|
Sulfate Attack Resistance of Concrete Subjected to Disturbance in Hardening Stage |
Huimin PAN,Jun FU,Qingxin ZHAO
|
Key Laboratory of Mechanical Reliability for Heavy Equipments and Large Structures of Hebei Province, Yanshan University, Qinhuangdao 066004 |
|
|
Abstract The disturbance during hardening will cause mortar cracks and aggregate displacement, which can affect the later strength and durability. Using shaking table to simulate engineering disturbance, the deterioration rule of early disturbed concrete under dry wet cycle was investigated systematically by means of ultrasonic and scanning electron microscopy in order to analyze the effect of the disturbance of hardening period on the sulfate resistance of concrete. The mechanism of concrete damage deterioration was discussed. Results show that the disturbance closer to initial setting (the penetration resistance is 3.5 MPa to 11.5 MPa) and final setting (the penetration resistance is 19.5 MPa to 28.0 MPa) has smaller effect on concrete. The change rule of weight and relative dynamic elastic modulus is consistent with that of the non-disturbed concrete. The disturbance of hardening medium (the penetration resistance is 11.5 MPa to 19.5 MPa) has obvious influence on concrete. The compressive strength loss reaches above 14% and the flexural strength loss is more than 20%; in the course of corrosion, the weight of concrete decreases obviously after 90 cycles. The relative dynamic modulus decreases sharply after 130 cycle, and reaches 0.60 after the 250 cycle. The relative dynamic modulus of the concrete is still about 0.90. The results of SEM show that the internal micro cracks of the disturbed concrete increase and the structural compactness becomes worse, and the disturbance accelerates the deterioration of concrete under sulfate attack.
|
Published: 25 January 2018
|
|
|
|
|
Influence of disturbance in hardening stage on the 28 d strength of concrete
|
|
Mass change rate versus corrosion cycle times
|
|

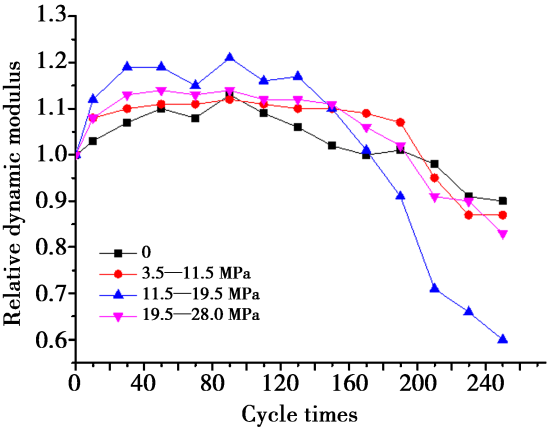

Relative dynamic modulus versus corrosion cycle times
|
|
Typical appearance of concrete at 250 cycle corrosion age
|
|
SEM images of concrete at 250 d corrosion age
|
1 | Thidar Aye, Chiaki T Oguchi . Resistance of plain and blended cement mortars exposed to severe sulfate attacks[J]. Construction and Building Materials, 2011,25(6):2988. | 2 | Gao Jianming, Yu Zhenxin, Song Luguang , et al. Durability of concrete exposed to sulfate attack under flexural loading and drying-wetting cycles[J]. Construction and Building Materials, 2013,39:33. | 3 | Gao Rundong, Li Qingbin, Zhao Shunbo . Concrete deterioration mechanisms under combined sulfate attack and flexural loading[J]. Journal of Materials in Civil Engineering, 2013,25(1):39. | 4 | Zhao Li, Liu Juanhong, Zhou Weijin , et al. Damage evolution and mechanism of concrete erosion at sulfate environment in underground mine[J]. Journal of China Coal Society, 2016,41(6):1422(in Chinese). | 5 | 赵力, 刘娟红, 周卫金 , 等. 矿井环境中混凝土材料腐蚀损伤演化与机理分析[J]. 煤炭学报, 2016,41(6):1422. | 6 | Liang Yongning, Yuan Yingshu . Mechanism of concrete destruction under sodium sulfate an magnesium sulfate solution[J]. Journal of the Chinese Ceramic Society, 2007,35(4):504 (in Chinese). | 7 | 梁咏宁, 袁迎曙 . 硫酸钠和硫酸镁溶液中混凝土腐蚀破坏机理[J]. 硅酸盐学报, 2007,35(4):504. | 8 | Yu Zhenxin, Gao Jianming, Song Luguang , et al. Damage process of concrete exposed to sulfate attack under drying-wetting cycles and loading[J]. Journal of Southeast University (Natural Science Edition), 2012,42(3):487(in Chinese). | 9 | 余振新, 高建明, 宋鲁光 , 等. 荷载-干湿交替-硫酸盐耦合作用下混凝土损伤过程[J]. 东南大学学报(自然科学版), 2012,42(3):487. | 10 | Yuan Lidong, Niu Ditao, Jiang Lei , et al. Study on damage of concrete under the combined action of sulfate attack and freeze-thaw cycle[J]. Bulletin of the Chinese Ceramic Society, 2013,32(6):1171(in Chinese). | 11 | 苑立冬, 牛荻涛, 姜磊 , 等. 硫酸盐侵蚀与冻融循环共同作用下混凝土损伤研究[J]. 硅酸盐通报, 2013,32(6):1171. | 12 | Huang Qian, Wang Chong . Deterioration and its mechanism of concrete under combined action of electrical field and sulfate attack[J]. Journal of the Chinese Ceramic Society, 2016,44(2):239(in Chinese). | 13 | 黄谦, 王冲 . 电场与硫酸盐侵蚀共同作用下混凝土的劣化及其机理[J]. 硅酸盐学报. 2016,44(2):239. | 14 | Leemann R, Loser R . Analysis of concrete in a vertical ventilation shaft exposed to sulfate-containing groundwater for 45 years[J]. Cement and Concrete Composites, 2011,33(1):74. | 15 | Pan Huimin, Zhao Qingxin, Fu Jun . Development on performance of early age concrete under disturbance[J]. Bulletin of the Chinese Ceramic Society, 2017,36(1):64(in Chinese). | 16 | 潘慧敏, 赵庆新, 付军 . 早龄期混凝土受扰性能研究进展[J]. 硅酸盐通报, 2017,36(1):64. | 17 | Li Shibin, Sun Wei . Review on deterioration of concrete subjected to coupling effect of fatigue load, carbonation and chlorides[J]. Journal of the Chinese Ceramic Society, 2013,41(11):1459(in Chinese). | 18 | 李士彬, 孙伟 . 疲劳、碳化和氯盐作用下混凝土劣化的研究进展[J]. 硅酸盐学报, 2013,41(11):1459. | 19 | Zhang Yongjuan, Zhang Yueran, Zhang Xiong . Three techniques to improve disturbance resistance of concrete[J]. Journal of Building Materials, 2011,14(1):26(in Chinese). | 20 | 张永娟, 张悦然, 张雄 . 改善混凝土抗扰动性能的三种途径[J]. 建筑材料学报, 2011,14(1):26. | 21 | Jiang Zhengwu, Ren Qiang, Yuan Zhengcheng . Effects of vehicle-bridge coupled vibration on early-age properties of concrete and its damage mechanism[J]. Journal of Building Materials, 2015,18(3):471(in Chinese). | 22 | 蒋正武, 任强, 袁政成 . 车桥耦合振动对混凝土早期性能的影响及其损伤机理[J]. 建筑材料学报, 2015,18(3):471. | 23 | Pan Huimin, Wang Fengxian, Zhao Qingxin . Influence of distur-bance in hardening stage on mechanical properties of concrete[J]. Journal of Building Materials, 2016,19(4):631(in Chinese). | 24 | 潘慧敏, 王奉献, 赵庆新 . 硬化期扰动对混凝土力学性能的影响[J]. 建筑材料学报, 2016,19(4):631. | 25 | Wei Jianjun, Xing Jiaoxiu, Fu Zhi . Effect of traffic load induced bridge vibrations on concrete tensile properties[J]. Journal of Sout-heast University (Natural Science Edition), 2010,40(5):1057(in Chinese). | 26 | 魏建军, 邢姣秀, 付智 . 行车荷载引起桥梁振动对修复混凝土性能影响[J]. 东南大学学报(自然科学版), 2010,40(5):1057. | 27 | 16 Kwan A K H, Ng P L . Effect of vibration on curing concrete stitch: Part Ⅱ-cracking, deboning and strength reduction[J]. Engineering Structures, 2007,29(11):2881. | 28 | Dai Miaoxian, Yang Junjie, Ying Yimiao , et al. Experimental study on bond force of early-age reinforced concrete under aftershock[J]. Building Structrue, 2011,41(3):75(in Chinese). | 29 | 戴妙娴, 杨俊杰, 应义淼 , 等. 余震作用下早龄期钢筋混凝土握裹力试验[J]. 建筑结构, 2011,41(3):75. | 30 | Ying Yimiao, Yang Junjie, Chen Xiong , et al. Cracks and internal damage analysis of early-age concrete columns under aftershock[J]. Building Structrue, 2011,41(3):72(in Chinese). | 31 | 应义淼, 杨俊杰, 陈雄 , 等. 余震作用下早龄期混凝土柱裂缝及内部损失分析[J]. 建筑结构, 2011,41(3):72. | 32 | Wang Shanshan, Qiu Ling, Wang Jingrong , et al. Study of concrete dynamic failure process based on supersonic detection[J]. Journal of Experimental Mechanics, 2011,26(3):311(in Chinese). | 33 | 王山山, 邱玲, 王京荣 , 等. 混凝土动态破坏过程超声波测试研究[J]. 实验力学, 2011,26(3):311. | 34 | Zhao Qingxin, Li Donghua, Yan Guoliang , et al. Corrosion resis-tance of damaged concrete exposed to sulphate attack[J]. Journal of the Chinese Ceramic Society, 2012,40(2):217(in Chinese). | 35 | 赵庆新, 李东华, 闫国亮 , 等. 受损混凝土抗硫酸盐腐蚀性能[J]. 硅酸盐学报, 2012,40(2):217. | 36 | Hou Dongwei, Zhang Jun, Sun Wei , et al. Determination of concrete setting time based on measurements of deformation[J]. Journal of the Chinese Ceramic Society, 2009,37(7):1079(in Chinese). | 37 | 侯东伟, 张君, 孙伟 , 等. 基于早期变形特征的混凝土凝结时间的确定[J]. 硅酸盐学报, 2009,37(7):1079. |
|
|
|
|
