废印刷电路板非金属粉负载二氧化硅杂化填料的制备及其在不饱和聚酯中的应用

doi:10.11896/j.issn.1005-023X.2018.02.024

Abstract
Figure/Table
References
Related Citation (15)

Download:

richhtml

Full Text ( PDF ) (2758KB)
Export: BibTeX | EndNote (RIS)

Abstract

To strengthen the interfacial interaction between waste printed circuit boards powders (WPCBP) and polymer matrix, WPCBP was immobilized a layer of SiO₂ nanoparticles to form a novel WPCBP-SiO₂ hybrid filler by sol-gel method. SEM, TGA and FTIR suggested that SiO₂ nanoparticles were chemically bonded onto the surface of WPCBP. Then WPCBP-SiO₂ hybrid filler was modified with a silane coupling agent and incorporated in unsaturated polyester resin (UPE) matrix. The effect of WPCBP-SiO₂ hybrid filler on mechanical properties, interfacial bonding and thermal stability of UPE composites were comprehensively explored. It has been confirmed that WPCBP-SiO₂ hybrid filler could form a strong interfacial interaction with polymer matrix, and markedly enhance the mechanical properties and thermal stability of UPE composites. Besides, the modification of hybrid filler give further improvements of UPE composites.

Key words： hybrid filler WPCBP unsaturated polyester resin mechanical property reinforcing mechanism thermal stability

Published: 25 January 2018 Online: 2018-01-25

CLC number:

TQ327

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Dechao HU
	Zhixin JIA
	Bangchao ZHONG
	Huanhuan DONG
	Yong DING
	Yuanfang LUO
	Demin JIA

Cite this article:

Dechao HU,Zhixin JIA,Bangchao ZHONG, et al. Preparation of WPCBP/SiO₂ Hybrid Filler and Its Application in Unsaturated Polyester Resin[J]. Materials Reports, 2018, 32(2): 278-281.

URL:

https://www.mater-rep.com/EN/10.11896/j.issn.1005-023X.2018.02.024 OR https://www.mater-rep.com/EN/Y2018/V32/I2/278

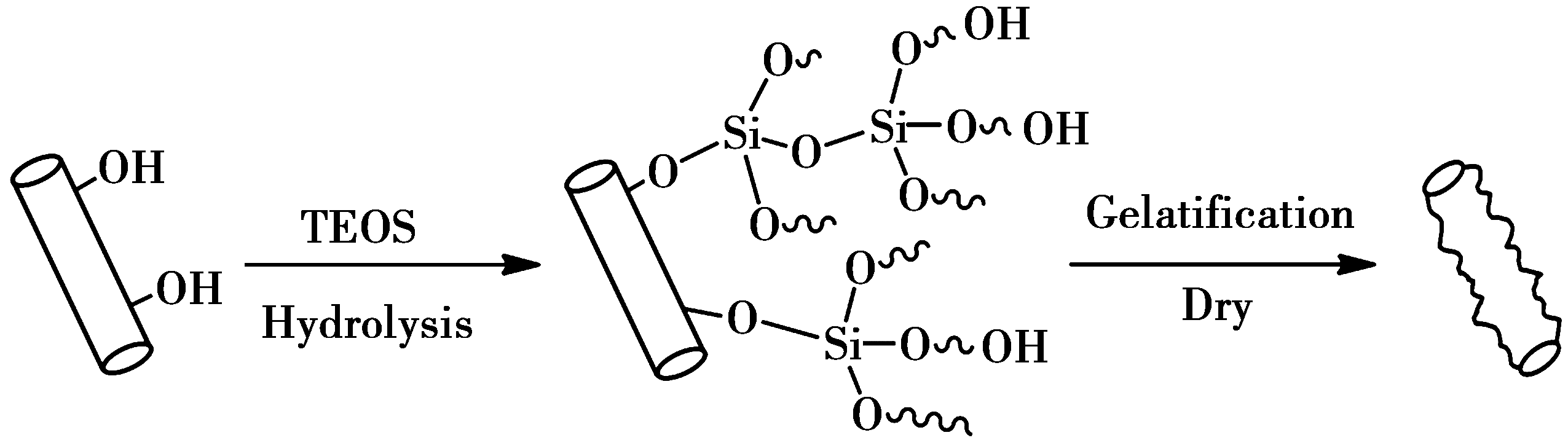

Schematic diagram of preparation of WPCBP-SiO₂hybrid filler

SEM images of (a—c) WPCBP and (d—f) WPCBP-SiO₂ hybrid filler

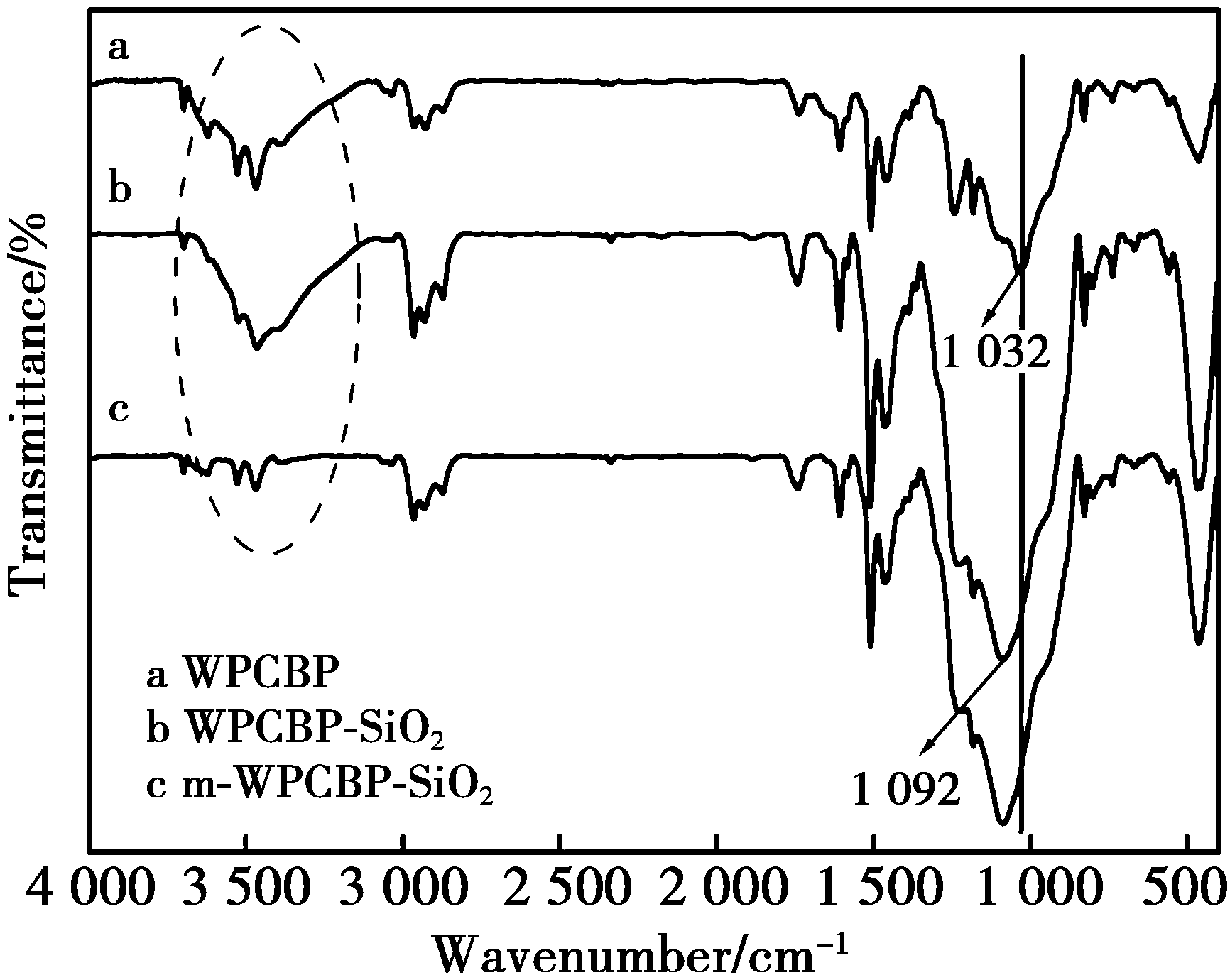

FTIR curves of WPCBP, WPCBP-SiO₂ and m-WPCBP-SiO₂

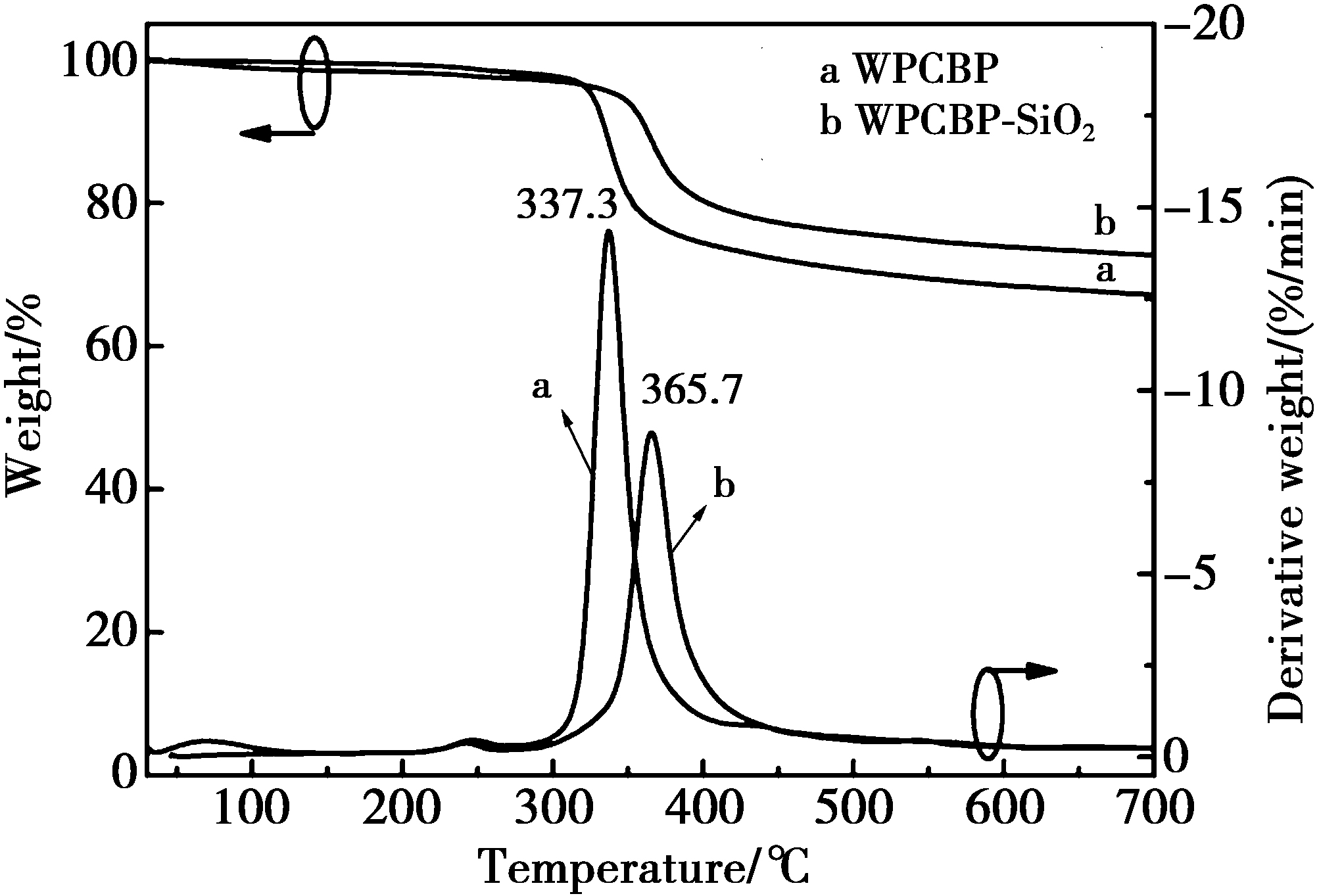

TGA and DTG curves of WPCBP and WPCBP-SiO₂

SEM images of UPE composites filled with (a,b) WPCBP, (c,d) WPCBP-SiO₂ and (e,f) m-WPCBP-SiO₂

Mechanical properties of UPE and UPE composites

Proposed model for the reinforcing mechanismof UPE composites

TGA curves of UPE and UPE composites

1	Huang K, Guo J, Xu Z , et al. Recycling of waste printed circuit boards:A review of current technologies and treatment status in China[J]. Journal of Hazardous Materials, 2009,164(2-3):399.
2	Zhou Y, Qiu K . A new technology for recycling materials from waste printed circuit boards[J]. Journal of Hazardous Materials, 2010,175(1-3):823.
3	Zheng Y H, Shen Z G, Cai C J , et al. Polypropylene filled with nonmetals recycled from waste PCBs[J]. Polymer Materials Science and Engineering, 2009,25(9):154(in Chinese).
4	郑艳红, 沈志刚, 蔡楚江 , 等. 废印刷电路板非金属粉填充聚丙烯的实验[J]. 高分子材料科学与工程, 2009,25(9):154.
5	Wang X, Guo Y, Liu J , et al. PVC-based composite material containing recycled non-metallic printed circuit board (PCB) powders[J]. Journal of Environmental Management, 2010,91(12):2505.
6	Wang F, He H, Chen J Z , et al. Modifying of PE wood-plastic composite with waste printed circuit board nonmetal powder[J]. Polymer Materials Science and Engineering, 2012,28(8):174(in Chinese).
7	王丰, 何慧, 陈继尊 , 等. 废PCB粉增强改性聚乙烯基木塑复合材料[J]. 高分子材料科学与工程, 2012,28(8):174.
8	Zheng Y H, Shen Z G, Cai C J , et al. Mechanical properties of PP matrix composites filled with nonmetals recycled from waste PCB and milled glass fibers[J]. Acta Materiae Compositae Sinica, 2009,26(2):59(in Chinese).
9	郑艳红, 沈志刚, 蔡楚江 , 等. 废印刷电路板非金属粉增强及磨碎玻璃纤维增强聚丙烯力学性能[J]. 复合材料学报, 2009,26(2):59.
10	Hong S G, Su S H . The use of recycled printed circuit boards as reinforcing fillers in the polyester composite[J]. Journal of Environmental Science & Health Part A, 1996,31(6):1345.
11	Xu B F, Lin Z D, Xian J M , et al. Preparation and characterization of polypropylene composites with nonmetallic materials recycled from printed circuit boards[J]. Journal of Thermoplastic Composite Materials, 2016,29(1):48.
12	Li S Y, Sun Y S, Liang H F , et al. Production and characterization of polypropylene composites filled with glass fibre recycled from pyrolysed waste printed circuit boards[J]. Environmental Technology, 2014,35(21):2743.
13	Fan W, Zhang C, Liu T X . Recent progress in graphene/polymer composites[J]. Acta Materiae Compositae Sinica, 2013,30(1):14(in Chinese).
14	樊玮, 张超, 刘天西 . 石墨烯/聚合物复合材料的研究进展[J]. 复合材料学报, 2013,30(1):14.
15	Yang W B, Zhang L, Liu J W , et al. Progress in research on preparation and application of graphene composites[J]. Journal of Mate-rials Engineering, 2015,43(3):91(in Chinese).
16	杨文彬, 张丽, 刘菁伟 , 等. 石墨烯复合材料的制备及应用研究进展[J]. 材料工程, 2015,43(3):91.
17	Fan Z J, Yan J, Zhi L J , et al. A three-dimensional carbon nanotube/graphene sandwich and its application as electrode in supercapacitors[J]. Advanced Materials, 2010,22(33):3723.
18	Zhang C, Huang S, Weng W T , et al. Facile preparation of water-dispersible graphene sheets stabilized by acid-treated multi-walled carbon nanotubes and their poly(vinyl alcohol) composites[J]. Journal of Materials Chemistry, 2012,22(6):2427.
19	Lin Y, Liu S Q, Peng J , et al. The filler-rubber interface and reinforcement in styrene butadiene rubber composites with graphene/si-lica hybrids: A quantitative correlation with the constrained region[J]. Composites Part A: Applied Science and Manufacturing, 2016,86:19.
20	Jiang L, Zhang C, Liu M , et al. Simultaneous reinforcement and toughening of polyurethane composites with carbon nanotube/halloysite nanotube hybrids[J]. Composites Science and Technology, 2014,91(31):98.
21	Lin J, Zhong B C, Jia Z X , et al. In-situ fabrication of halloysite nanotubes/silica nano hybrid and its application in unsaturated polyester resin[J]. Applied Surface Science, 2017,407(15):130.
22	Xing M F, Zhang F S . Degradation of brominated epoxy resin and metal recovery from waste printed circuit boards through batch sub/supercritical water treatments[J]. Chemical Engineering Journal, 2013,219(1):131.
23	Liu Y, Deng C L, Zhao J , et al. An efficiently halogen-free flame-retardant long-glass-fiber-reinforced polypropylene system[J]. Polymer Degradation and Stability, 2011,96(3):363.
