高应变率下多尺寸聚丙烯纤维混凝土动态压缩力学性能研究

doi:10.11896/j.issn.1005-023X.2018.02.026

Abstract
Figure/Table
References
Related Citation (15)

Download:

richhtml

Full Text ( PDF ) (3824KB)
Export: BibTeX | EndNote (RIS)

Abstract

Impacting compression tests of fine polypropylene fibers in two sizes and thick polypropylene fibers in one size, single-doped and mix-doped with concrete were conducted by 74 mm diameter split Hopkinson pressure bar (SHPB). Multi-size polypropylene fiber concrete specimens with coarse, fine fiber and different fiber content at 5 different strain rates under dynamic compressive strength, dynamic compressive deformation, dynamic compressive toughness and failure forms were compared and analyzed. The dynamic mechanical properties of polypropylene fiber were studied. The results showed that the dynamic compressive strength, dynamic compression deformation and dynamic compression toughness of concrete and fiber concrete show a significant strain rate effect with the increase of strain rate. In the range of strain rate, the dynamic compressive strength of coarse polypropylene fiber reinforced concrete is the highest, and in comparing with that of the plain concrete increased by 132.36%—213.85%. The dynamic compressive strength growth factor of multi-scale polypropylene fiber concrete is basically the same with that of plain concrete. The dynamic peak strain and ultimate strain of concrete under different strain rates can be increased effectively by adding polypropylene fiber. The dynamic ultimate toughness of multi-scale polypropylene fiber concrete is higher than that of polypropylene fiber concrete, and the dynamic ultimate toughness is the highest when the content of fine polypropylene fiber is 1.2 kg/m ³, and the growth rate is up to 121.11%.

Key words： polypropylene fiber reinforced concrete SHPB multi-size strain rate effect dynamic characteristics

Published: 25 January 2018 Online: 2018-01-25

CLC number:

TU37

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Ninghui LIANG
	Peng YANG
	Xinrong LIU
	Yang ZHONG
	Zheqi GUO

Cite this article:

Ninghui LIANG,Peng YANG,Xinrong LIU, et al. A Study on Dynamic Compressive Mechanical Properties of Multi-size Polypropylene Fiber Concrete Under High Strain Rate[J]. Materials Reports, 2018, 32(2): 288-294.

URL:

https://www.mater-rep.com/EN/10.11896/j.issn.1005-023X.2018.02.026 OR https://www.mater-rep.com/EN/Y2018/V32/I2/288

Physical and mechanical parameters of polypropylene fiber

Mix proportions of concrete

Specimen number and average static compressive strength

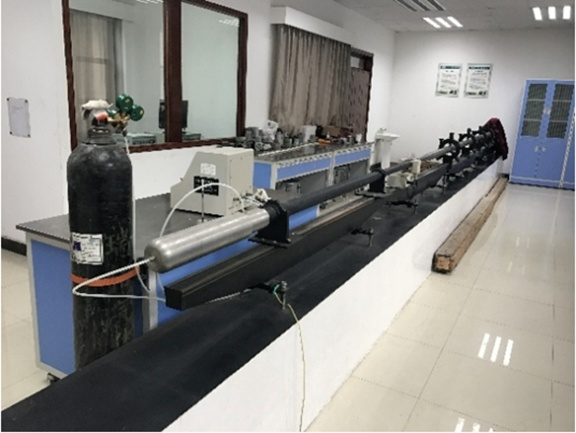

Apparatus of 74 mm diameter SHPB

Processed part of the specimen

Summary of SHPB tests on multi-scale polypropylene fiber concrete

Stress-strain curves of concrete and fiber reinforced concrete with different strain rates

Dynamic compressive strength of MPFC with different strain rate

Dynamic increase factor of MPFC with different strain rate

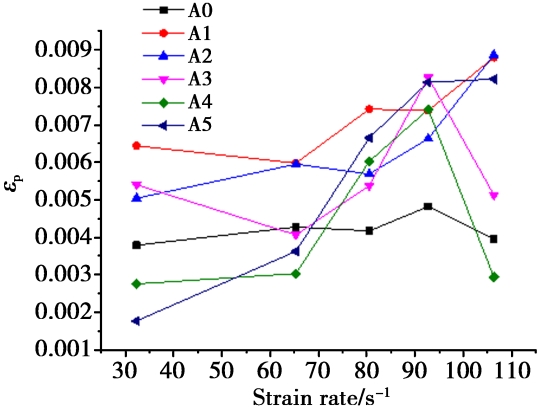

Dynamic peak strain of MPFC with different strain rate

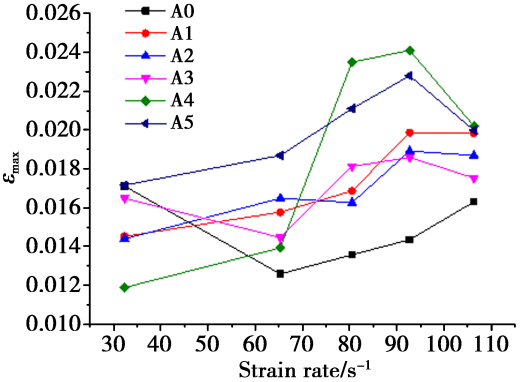

Dynamic limit strain of MPFC with different strain rate

Dynamic peak toughness of MPFC with different strain rates

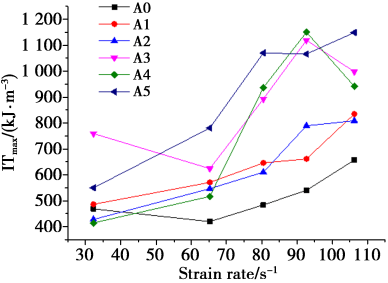

Dynamic limit toughness of MPFC with differentstrain rates

Typical damage form of plain concrete and fiber concrete

1	Tang T, Malvern L, Jenkins D . Rate effects in uniaxial dynamic compression of concrete[J]. Journal of Engineering Mechanics, 1992,118(1):108.
2	Ross C A, Tedesco J W, Kuennen S T . Effects of strain-rate on concrete strength[J]. ACI Materials Journal, 1995,92(1):37.
3	Jitsu K, Shirai K, Ito C, et al. Effects of strain rate on concrete strength subjected to impact load-dynamic compressive strength test by Split Hopkinson pressure bar method [C]∥5th International Conference on Structures Under Shock and Impact.Greece, 1998.
4	Jiang Guoping, Huan Shi, Jiao Chujie , et al. Dynamic performances of polypropylene fiber reinforced concrete based on SHPB experiment[J]. Journal of Sichuan University (Engineering Science Edition), 2009,41(5):82(in Chinese).
5	蒋国平, 浣石, 焦楚杰 , 等. 基于SHPB试验的聚丙烯纤维增强混凝土动态力学性能研究[J]. 四川大学学报(工程科学版), 2009,41(5):82.
6	Zhang Yuning, Fang Qin, Hou Xiaofeng, et al. SHPB test research on dynamic mechanical properties of polypropylene fiber reinforced concrete with high fiber volume[J].Concrete, 2006(9):54(in Chinese).
7	张育宁, 方秦, 侯晓峰 , 等. 高掺量聚丙烯纤维混凝土动力性能的SHPB试验研究[J].混凝土, 2006(9):54.
8	Hu Jinsheng, Zhou Zaosheng, Tang Degao , et al. Study of SHPB compression experiment for polypropylene fiber reinforced concrete[J]. China Civil Engineering Journal, 2004,37(6):12(in Chinese).
9	胡金生, 周早生, 唐德高 , 等. 聚丙烯纤维增强混凝土分离式Hopkinson压杆压缩试验研究[J]. 土木工程学报, 2004,37(6):12.
10	Zhang Hua, Liu Yang, Sun Hao , et al. Transient dynamic behavior of polypropylene fiber reinforced mortar under compressive impact loading[J]. Construction and Building Materials, 2016,111(2):30.
11	Yan Shaohua, Guo Zhikun, Chen Li . Dynamic behaviors of polypropylene fiber reinforced lightweight aggregate concrete by SHPB tests[J]. Journal of PLA University of Science and Technology (Natural Science Edition), 2008,9(2):156(in Chinese).
12	严少华, 郭志昆, 陈立 . 聚丙烯纤维增强轻骨料混凝土SHPB试验[J]. 解放军理工大学学报(自然科学版), 2008,9(2):156.
13	Li Weimin, Xu Jinyu . Mechanical properties of basalt fiber reinforced geopolymeric concrete under impact loading[J]. Materials Science and Engineering A, 2009,505(1-2):178.
14	Wang Pu, Huang Zhen, Zhou Dai , et al. Impact mechanical properties of concrete reinforced with hybrid carbon fibers[J]. Journal of Vibration and Shock, 2012,31(12):14(in Chinese).
15	王璞, 黄真, 周岱 , 等. 碳纤维混杂纤维混凝土抗冲击性能研究[J]. 振动与冲击, 2012,31(12):14.
16	11 Li Zhi, Lu Zhean, Chen Meng, et al. Impact compression experiment of hybrid fiber reinforced concrete by using SHPB technique[J].Concrete, 2011(4):20(in Chinese).
17	李智, 卢哲安, 陈猛 , 等. 混杂纤维混凝土冲击压缩性能SHPB试验研究[J].混凝土, 2011(4):20.
18	Huang Guodong, Ma Qinyong . Experimental study and analysis of layer hybrid fiber reinforced concrete mechanical performance[J]. Chinese Journal of Underground Space and Engineering, 2010,6(2):329(in Chinese).
19	黄国栋, 马芹永 . 混杂纤维混凝土力学性能试验研究与分析[J]. 地下空间与工程学报, 2010,6(2):329.
20	Zhu Haitang, Gao Danying, Wang Zhanqiao . Experimental study on fracture properties of hybrid fiber Reinforced high-strength concrete[J]. Journal of Building Structures, 2010,31(1):41(in Chinese).
21	朱海堂, 高丹盈, 王占桥 . 混杂纤维高强混凝土断裂性能试验研究[J]. 建筑结构学报, 2010,31(1):41.
22	Almusallam T, Ibrahim S M, Al Salloum Y , et al. Analytical and experimental investigations on the fracture behavior of hybrid fiber reinforced concrete[J]. Cement & Concrete Composites, 2016,74(11):201.
23	Liang Ninghui, Liu Xinrong, Sun Ji . Experimental study of crack resistance for multi-scale polypropylene fiber reinforced concrete[J]. Journal of China Coal Society, 2012,37(8):1304(in Chinese).
24	梁宁慧, 刘新荣, 孙霁 . 多尺度聚丙烯纤维混凝土抗裂性能的试验研究[J]. 煤炭学报, 2012,37(8):1304.
25	Song Li, Hu Shisheng . Two wave and three wave method in SHPB data processing[J]. Exlposion and Shock Waves, 2005,25(1):368(in Chinese).
26	宋力, 胡时胜 . SHPB数据处理中的二波法与三波法[J]. 爆炸与冲击, 2005,25(1):368.
