REVIEW PAPER |
|
|
|
|
|
Progress in Application of Porous Materials in VOCs Adsorption During Wood Drying |
Xia WANG1(),Liping AN1,Xiaotao ZHANG1,2,Ximing WANG2
|
1 College of Science, Inner Mongolia Agricultural University, Hohhot 010018 2 College of Material Science and Art Design, Inner Mongolia Agricultural University, Hohhot 010018 |
|
|
Abstract A series of volatile organic compounds (VOCs) will be produced in drying process of wood, which will seriously endanger human body and destroy the ecological environment. Currently, it has been an universal concern to control the release and adsorption of VOCs in drying process of wood industry and seek the eco-friendly, highly effective adsorbents. This review firstly summarized the VOCs adsorption on the activated carbon, activated carbon fiber, activated carbon nanofiber, molecular sieves and montmorillonite mesoporous materials. Secondly, the utilization of the novel and appropriate MOFs in the VOCs adsorption during drying process of wood is introduced. Finally, the application of MOFs materials based on the achievements is proposed.
|
Published: 10 January 2018
|
|
|
|
Compound | Formaldehyde | Acetaldehyde | Acraldehyde+butanone | Carbinol | Formic acid | Benzoic acid | The total release amount/(mg·m-3) | 7 505 | 7 606 | 284 | 46 468 | 14 369 | 74 |
|
The release amount of part VOCs in wood drying process
|
Sample | SBET/(m2·g-1) | Smic/(m2·g-1) | Smeso/(m2·g-1) | Adsorption capacity/(mg·g-1) | AC-1 | 941.07 | 769.11 | 171.96 | 151.3 | AC-2 | 1 314.94 | 978.93 | 336.00 | 198.9 | AC-3 | 1 072.84 | 510.36 | 562.48 | 148.1 | AC-4 | 1 381.76 | 256.02 | 1 125.74 | 63.3 |
|
The adsorption effects on activated carbons
|
Sample | SBET/(m2·g-1) | Smic/(m2·g-1) | Mass fraction/% | | C | O | N | C-C | C-O | C=O | O-C=O | AC-2 | 1 314.94 | 978.93 | 95.170 | 4.259 | 0.571 | 53.37 | 15.78 | 12.83 | 13.19 | AC-2-HNO3 | 989.92 | 735.59 | 92.846 | 6.078 | 1.077 | 46.66 | 15.98 | 14.11 | 16.09 | AC-2-H2O2 | 1 088.78 | 784.79 | 94.132 | 5.631 | 0.237 | 49.04 | 15.55 | 15.23 | 15.01 | AC-2-NH3-NH4Cl | 1 079.85 | 803.46 | 95.544 | 3.840 | 0.616 | 61.78 | 10.45 | 12.14 | 11.38 |
|
The characteristic parameters and surface element content on activated carbon after HNO3, H2O2, NH3-NH4Cl treatment
|
Activated carbon | Theoretical effective adsorption of pore volume/(mL·g-1) | Methylbenzene | Dimethylbenzene | Acetone | Carbinol | 1,2-Dichloroethane | AC-1 | 0.326 17 | 0.332 98 | 0.378 61 | 0.356 66 | 0.311 42 | AC-2 | 0.278 78 | 0.273 08 | 0.431 48 | 0.411 05 | 0.271 81 | AC-3 | 0.306 73 | 0.317 8 | 0.447 98 | 0.439 17 | 0.303 13 |
|
The competitive adsorption effects on different activated carbons
|
Adsorbate | Saturation of adsorbance mg·g-1 | Penetration of adsorbance mg·g-1 | Saturation time min | Penetration time min | Methylbenzene | 32.469 8 | 0.359 3 | 190 | 110 | Acetic ether | 52.290 7 | 0.674 6 | 295 | 150 | Acetone | 86.404 1 | 0.963 3 | 400 | 210 |
|
The related parameters of different VOCs in the fixed bed
|
|
Schematic diagram of montmorillonite silicon oxygen tetrahedron and aluminium oxygen octahedron
|
|
The XRD patterns of montmorillonite and sulfuric acid activated montmorillonite
|
|
Diagram of BTEXs into MIL-101 pore
|
|

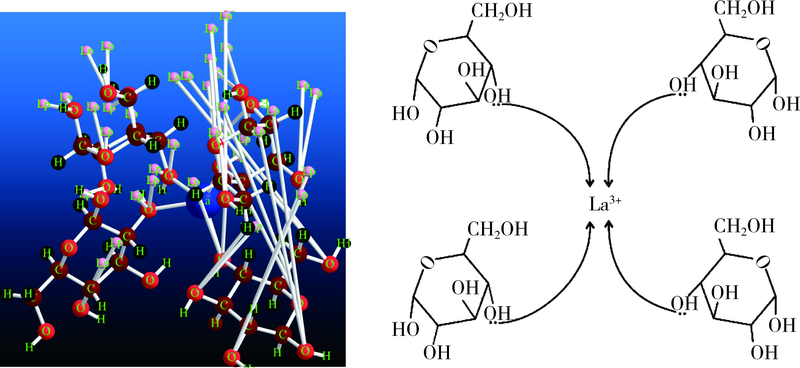

The simple combination of lanthanum ion and glucose
|
